Wall Mount IP Speaker

IP-Enabled 8″ indoor Wall Mount IP Speaker, SIP Speaker or VoIP Speaker.  White, 8 Watt, PoE Only. It can be used for IP Paging, SIP Paging and 2-way audio environments.
Ordering Options:

Firmware Feature SKU
IP7 SPKR-IPSystem-1-HD
S3 SPKR-IPSystem-1-HD-S3
S3/InformaCast SPKR-IPSystem-1-HD-S3-IC

Detailed information about each feature is described in the “Additional information” tab below.
Also available in heavy duty outdoor model.  See below for ordering options.

SKU: SPKR-IPSystem-1-HD Category:

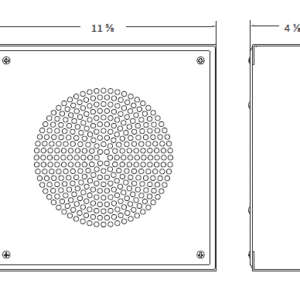

The Wall Mount IP Speaker is an enclosed wall mount IP Speaker, SIP Speaker, VoIP Speaker designed for IP Paging, SIP Paging and emergency notifications. It measures 11 5/8″ square by 4 1/8″ deep and is PoE powered.

This speaker is enabled with the ability for half duplex 2-Way/Talk-back (speaker is also used as a microphone).

Also available in a heavier vandal resistant housing with security screens behind the face plate protecting the moisture resistant speaker. Suitable for outdoor use.
Ordering Options:

Firmware Feature SKU
IP7 SPKR-IPSystem-1-VP-HD
S3 SPKR-IPSystem-1-VP-HD-S3
S3/InformaCast SPKR-IPSystem-1-VP-HD-S3-IC

Click for Product Datasheet

Digital Acoustics
Latest posts by Digital Acoustics (see all)
IP7

The IP7 Firmware Feature enables compatibility with Digital Acoustics TalkMaster FOCUS software and/or to SIP based phone systems.

TalkMaster FOCUS enables multiple console operators to communicate with IP Endpoints through two-way intercom calls and to send one-way messages to predefined paging groups.

The IP7 Firmware also enables connection to a SIP based phone system and to receive calls and if so equipped to initiate a call. SIP Peer-to-Peer mode is also supported.

IP Endpoints can connect to TalkMaster or to a SIP phone system or to both systems concurrently.

TalkMaster Administrator Console can be used to configure all of the the IP Endpoint's connections and options.
S3

The S3 Firmware Feature enables an IP Endpoint to connect to a SIP based Phone System.

S3 Firmware enables the IP Endpoint to be configured through a standard web browser and supports the high fidelity G.722 voice codec. in addition to the standard G.711 uLaw and aLaw voice codecs. IP Endpoint can receive and automatically answer calls. They can also initiate a SIP call if so equipped.

SIP Peer-to-Peer mode is also supported.
S3/InformaCast

The S3/InformaCast Firmware feature enables the IP Endpoint to connect to Singlewire's InformaCast software and to SIP based Phone systems. Please note that InformaCast only supports outbound paging even on products that have two-way capabilities.

With S3/InformaCast firmware, IP Endpoints can be grouped together for multicast paging from Cisco Universal Call Manager (CUCM) or other IP based phone systems.

It also enables the IP Endpoint to optionally connect to a SIP based Phone System with browser based configuration as well as the high fidelity G.722 voice codec in addition to the standard G.711 uLaw and aLaw voice codecs.

SIP Peer-to-Peer mode is also supported.
