Slim Wall Mount Full-Duplex IP Speaker
Slim Wall Mount Full-Duplex IP Speaker - Image 2
Slim Wall Mount Full-Duplex IP Speaker - Image 3

Slim Wall Mount Full-Duplex IP Speaker

Slimline wall mount full duplex IP Speaker, SIP Speaker, or VoIP Speaker. White, 8 Watt, PoE Only, it includes a 5″ speaker and integrated microphone.  Also compatible with IP Paging, SIP Paging and emergency notifications.

Ordering Options:

Firmware Feature SKU
IP7 SPKR-IP5-FD
S3 SPKR-IP5-FD-S3
S3/InformaCast SPKR-IP5-FD-S3-IC

Detailed information about each feature is described in the “Additional information” tab below.

SKU: SPKR-IP5-FD Category:

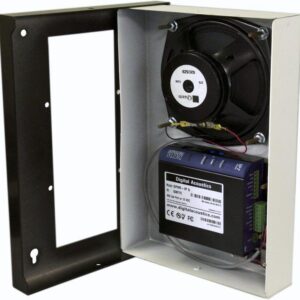

The SPKR-IP5-FD is a PoE (802.3af) IP Speaker, SIP Speaker or VoIP Speaker with integrated microphone for interior full-duplex capabilities. It can also be used for IP Paging, SIP Paging and emergency notifications The speaker can be wall mounted and measures 10 1/2″ tall, 7″ wide and 1 3/4″ deep.

It features a white finish and its small size makes it blend in small areas.

Designed for full-duplex capabilities, this IP Speaker can also can be configured for half-duplex operation or as a paging speaker.

Click for Product Datasheet

Digital Acoustics
Latest posts by Digital Acoustics (see all)
IP7

The IP7 Firmware Feature enables compatibility with Digital Acoustics TalkMaster FOCUS software and/or to SIP based phone systems.

TalkMaster FOCUS enables multiple console operators to communicate with IP Endpoints through two-way intercom calls and to send one-way messages to predefined paging groups.

The IP7 Firmware also enables connection to a SIP based phone system and to receive calls and if so equipped to initiate a call. SIP Peer-to-Peer mode is also supported.

IP Endpoints can connect to TalkMaster or to a SIP phone system or to both systems concurrently.

TalkMaster Administrator Console can be used to configure all of the the IP Endpoint’s connections and options.
S3

The S3 Firmware Feature enables an IP Endpoint to connect to a SIP based Phone System.

S3 Firmware enables the IP Endpoint to be configured through a standard web browser and supports the high fidelity G.722 voice codec. in addition to the standard G.711 uLaw and aLaw voice codecs. IP Endpoint can receive and automatically answer calls. They can also initiate a SIP call if so equipped.

SIP Peer-to-Peer mode is also supported.
S3/InformaCast

The S3/InformaCast Firmware feature enables the IP Endpoint to connect to Singlewire’s InformaCast software and to SIP based Phone systems. Please note that InformaCast only supports outbound paging even on products that have two-way capabilities.

With S3/InformaCast firmware, IP Endpoints can be grouped together for multicast paging from Cisco Universal Call Manager (CUCM) or other IP based phone systems.

It also enables the IP Endpoint to optionally connect to a SIP based Phone System with browser based configuration as well as the high fidelity G.722 voice codec in addition to the standard G.711 uLaw and aLaw voice codecs.

SIP Peer-to-Peer mode is also supported.
