Product Details

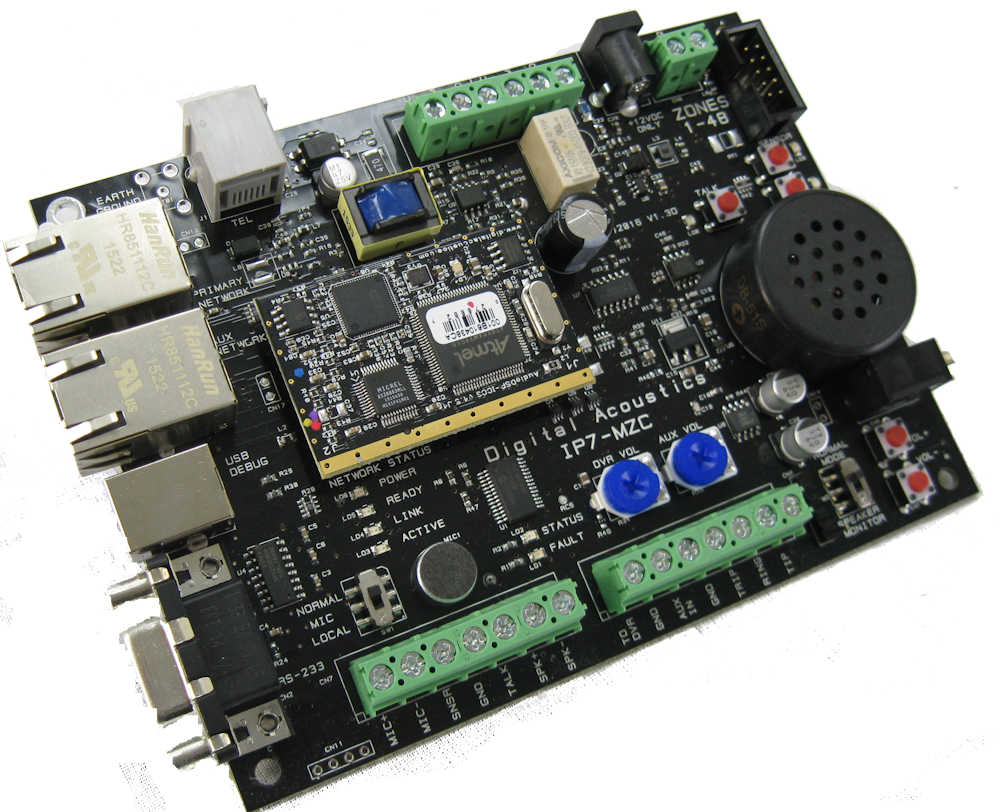

The IP7‑MZC‑FD Multi‑Zone Controller is an IP audio multi‑zone controller that provides the ability to communicate with up to forty‑eight zones of microphones and speakers (full‑duplex) through a single IP audio connection. Any combination of microphone and/or speaker zones can be turned on and off by the calling party, either through custom applications or via a SIP telephone.
The MZC combines the essential components for synchronized audio complementing video alarm verification in a compact package for fast, cost‑efficient installations. It is the optimum choice for advanced audio/video installations. The digitally controlled full‑duplex two‑way audio technology offers greater signal separation and faster switching.

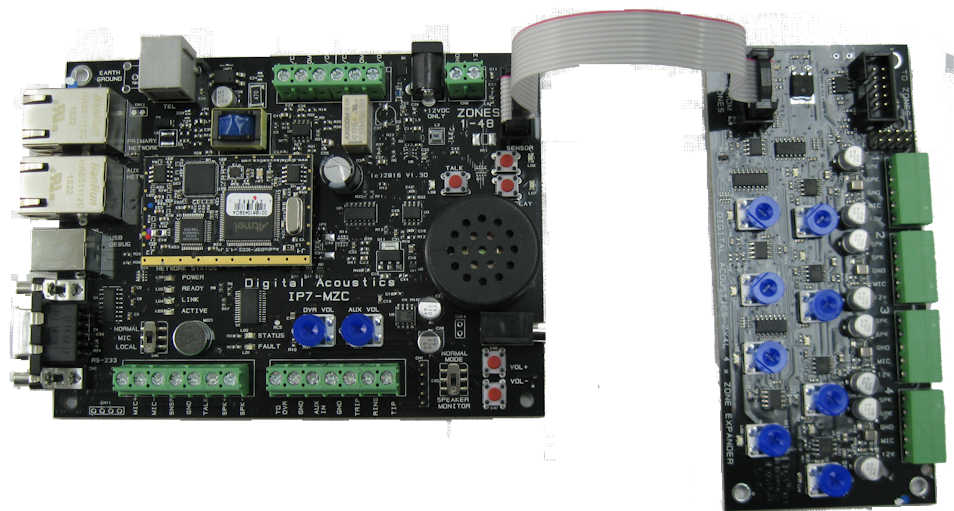

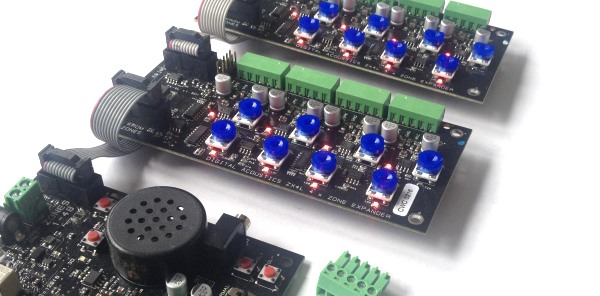

Up to twelve ZX4L four‑zone expansion modules can be cascaded off the IP7‑MZC‑FD for a total of up to 48 microphone/speaker zones. Central station personnel can establish one‑ or two‑way audio with any combination of zones. A standard telephone can also be plugged into the IP7‑MZC‑FD. Picking up the handset can either establish an IP connection with the central station or override any active zones of a current conversation so a private conversation can be carried on with the central station.
Software
Use our IP Multi‑Zone Controller boards along with the TalkMaster Software Suite, VoIP (SIP 2.0) telephony systems, or our Software Development Kits (SDKs) to easily implement your IP audio solution. The flexibility of our multi‑zone controller boards allows you to incorporate Digital Acoustics technology into your solution using a single IP connection and up to 48 full‑duplex audio zones to provide tailor‑made functionality.
For all your audio, paging, and emergency notification needs, use Digital Acoustics’ IP intercom and IP amplifier solutions.
- Same base functionality as Digital Acoustics’ IP intercoms and IP amplifiers
- Control board‑level functions using TalkMaster FOCUS software, SIP, or your custom application using one of the Digital Acoustics SDKs
IP7‑MZC‑FD Features
- DVR output (screw terminals) to allow the active conversation with the central station to be recorded to a DVR
- An onboard microphone and speaker so the installer can verify the audio connection with the central station before attaching any ZX4L expansion boards
- A software‑controlled onboard dry‑contact relay with two sets of normally open and normally closed terminals (DPDT)
Support for the IP7‑MZC‑FD is included in SureView’s IMMIX software, TalkMaster FOCUS software, and SIP 2.0 phone systems.
The MZC IP Multi‑Zone Controller also replaces the following analog (legacy) products from Eagle Alarm Verification Products with a nearly seamless IP‑based equivalent.
Model Equivalents Supported by the IP7‑MZC and ZX4L Boards
- Eagle Alarm Verification Products 2244
- Eagle 2244 Terminator Vox Pro 2‑Way Audio Alarm Verification Module 302244
- Two‑Way Audio Verification Module Model 2222
- 302172D Speaker/Microphone Duo for Terminator
- Eagle Security Terminator Two‑Way Audio Verification Module Model 1242 IP 2‑way multi‑zone amplifier alarm controller
Ordering Options:
| Firmware Feature | SKU |
| IP7 | IP7-MZC-FD |
| S3 (Optimized SIP) | IIP7-MZC-FD-S3 |
| S3/InformaCast | IP7-MZC-FD-S3-IC |
Note: Depending how many zones you want, you will need to our 1 or more 1P7-ZX4L expansion board
Product Documents
- Data Sheet
Datasheets IP7-MZC-FD
- Getting Started Guide
GettingStarted IP7-MZC-FD
- Reference Manual
ReferenceManual IP7-MZC-FD
