IP Audio Solutions for CyberGate and Microsoft Teams
Digital Acoustics provides IP Audio Endpoint solutions for CyberGate by CyberTwice using our industry leading IP Intercoms, IP Speakers, and IP Amplifiers. CyberGate connects Digital Acoustics devices directly to Microsoft Teams, enabling two-way intercom communication and live paging announcements from the Teams client your organization already uses every day.
CyberGate is a cloud-based (SaaS) service hosted in Microsoft Azure. Because it connects your Digital Acoustics devices natively to Microsoft Teams, there is no need for a Session Border Controller (SBC), Microsoft SIP Gateway, Direct Routing, Microsoft Phone System or Operator Connect licensing, PSTN phone numbers for your devices, or premium Teams user license upgrades. A single CyberGate device license supports both two-way intercom and paging announcements across Digital Acoustics products.
CyberGate is available through Microsoft AppSource and the Azure Marketplace.
Two Ways to Deploy
IP7 Firmware — TalkMaster™ FOCUS and Microsoft Teams together. CyberGate supports Digital Acoustics IP7 firmware, so end users can operate their devices with both TalkMaster™ FOCUS and CyberGate/Microsoft Teams for intercom and paging communications. Devices are set up using the TalkMaster™ FOCUS Administrator Console and can then be controlled through CyberGate and Microsoft Teams. For information about setting up CyberGate with Digital Acoustics using the IP7 firmware please see the instruction manual on the following CyberGate’s webpage: https://docs.cybertwice.com/digital-acoustics-and-cybergate
S3 (SIP) Firmware — Microsoft Teams only. CyberGate also supports our S3 firmware for customers who only want to use Microsoft Teams to have 2-way intercom communications and make announcements. In this deployment, the TalkMaster™ FOCUS Administrator Console is not required — devices are set up directly through the CyberGate/Microsoft Teams software.
CyberGate IP Intercoms and IP Speakers
The 2’x2′ Lay-in Ceiling Tile IP Speaker is our most popular model because it’s attractive and easy to install. Includes speaker and microphone public announcements and/or 2-way full-duplex communications.
The slimline wall mounted IP Speaker measures 10.5″ x 7″ x 1.75″ and works great in smaller indoor areas. Includes speaker and microphone public announcements and/or 2-way full-duplex communications.
Our wall mounted IP Speaker measures 11.63″ x 11.63″ x 4.13″ and is suitable for indoors. A heavy duty vandal resistant model is also available and is suitable for indoor or outdoor installations. This speaker only model is great for public announcements and can be put into half-duplex mode for 2-way communications.
Our BiDirectional Hallway IP Speaker can be wall or ceiling mounted and is designed to cover hallways up to 12′ x 100′.

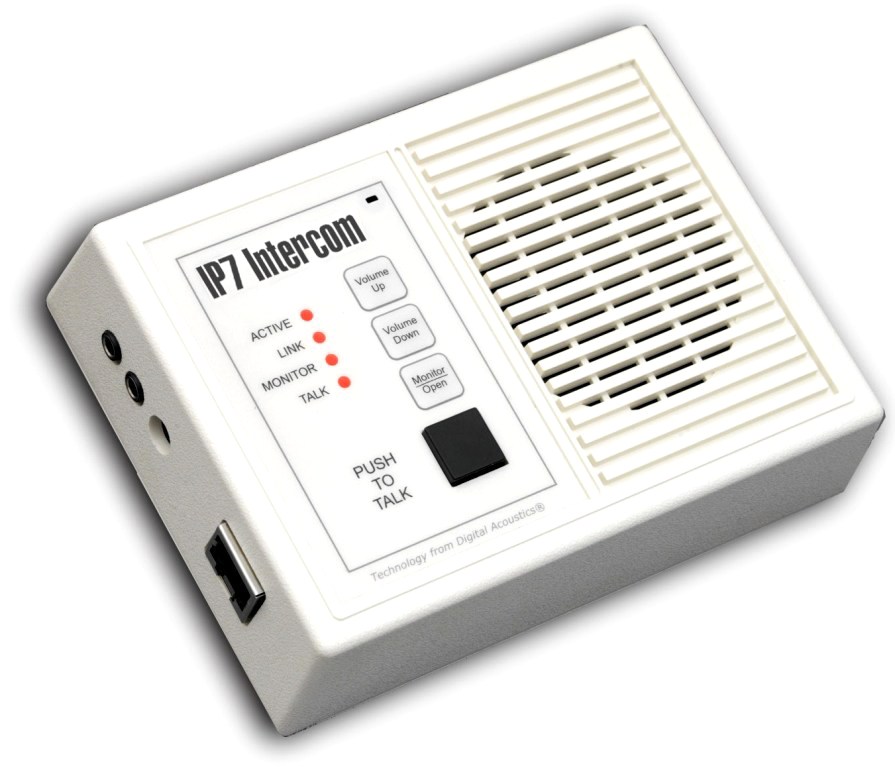

The IP7-EDW/B-POE is an all-in-one IP intercom designed to be installed on a wall or flat surface, such as a desk, and supports either full-duplex or half-duplex communications. It comes in black or white and is powered by either PoE or a 9V power supply
The INT_IP-2Gang is an all-in-one IP intercom door or gate station panel. It is designed to fit in an industry-standard two-gang electrical box with a plaster ring. It is powered by PoE.
CyberGate IP Amplifiers
Digital Acoustics can convert your existing or new 70V analog speakers or intercoms to Microsoft Teams paging or 2-way communications.
Our versatile IP7-FX Intercom and Paging Amplifier supplies up to 8 watts using 12VDC/PoE or 25 watts using 24VDC external power supply. It can drive 8 Ohm speakers or a 25/70V speaker distribution line.
The IP7-SS40 Amplifier supplies up to 40 watts using 24VDC external power supply. It can drive 8 Ohm speakers or a 25/70V speaker distribution line.
For additional information on configuring Digital Acoustics devices with CyberGate, view the device configuration manuals available on the CyberTwice website.
For additional information on CyberGate, visit the CyberTwice website or the Microsoft Azure Marketplace listing.
For additional information on InformaCast, visit the Singlewire software site.
A Solution For Every Need
Businesses big and small use our solutions on a daily basis to improve workplace communication and efficiency.
